PS20-EMER-D Control Unit 24V (951085)
Electrical control for pneumatic sirens.

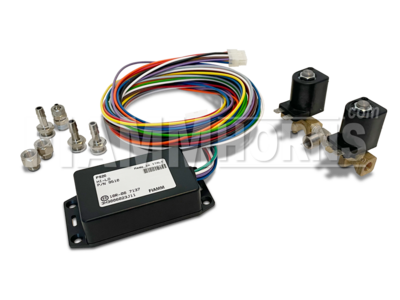

The PS20 is an electrical system consisting of a control unit that controls two magnetic valves (normally closed).
Air horns can be connected to the valves. These are opened and closed according to the programming (depending on the country) of the control unit.
This system is extremely suitable for vehicles with air on board.
Because the air pressure comes from the on-board air system; a separate compressor is no longer necessary.
This improves the reliability of the sirens and the maximum 'on' position of the system compared to a separate compressor.
The PS20 system has been tested against electromagnetic interference and is manufactured and developed in accordance with: CEE2009/19 and ECE Reg. 10.
Combined with the TA/2 906-V or TA/2 906-C or TA/4 906-C horns from Fiamm, this set is approved and homologated for German priority vehicles.
Please note: You will need an On-Board Air System for this product.
Basic Technical Info
| Nominal Voltage |
24Vdc |
| Voltage Range |
20-30V |
| Amperage |
0,7A |
| On board air pressure needed |
4-10 bar |
| Cycles per minute / Alternation |
20 |
| Frequency |
depending on air horns |
| Sound options |
- Truck horn sound
- Silent mode |
| Operating temperatures (Celcius) |
-30 •C to 80 •C |
| Storage temperatures (Celcius) |
-30 •C to 80 •C |
| Corrosion Resistance (Salt spray test in hours) |
> 96 Hrs |
| Operating relative humidity (%) |
30% - 80% |
| Continuous operating time (minutes) |
> 60 min. (depending on air source) |
| Weight (grams) |
750 gr. |
| Main Material |
Flame retardant PBT Resin
(Polybutylene Terephthalate) |
| Suitable for Vehicles |
Motorbikes, Trucks, Cars |
| Pneumatic connections valves |
Tube Ø 6-4 mm
Tube Ø 10-7 mm
(inlet thread: 1/8 BSPP /Gas) |
| HS Code |
85123090 |
| Registrations |
- REG. 10 ECE |
| Production conformities |
- ISO/TS 16949
- ISO 9001
- ISO 14001 |
